FastAPI

The FastAPI integration adds support for the FastAPI Framework.

Install

Install sentry-sdk from PyPI with the fastapi extra:

pip install --upgrade 'sentry-sdk[fastapi]'

Configure

If you have the fastapi package in your dependencies, the FastAPI integration will be enabled automatically when you initialize the Sentry SDK.

import sentry_sdk

sentry_sdk.init(
    dsn="https://examplePublicKey@o0.ingest.sentry.io/0",
    # Set traces_sample_rate to 1.0 to capture 100%
    # of transactions for tracing.
    traces_sample_rate=1.0,
    # Set profiles_sample_rate to 1.0 to profile 100%
    # of sampled transactions.
    # We recommend adjusting this value in production.
    profiles_sample_rate=1.0,
)

Verify

from fastapi import FastAPI

sentry_sdk.init(...)  # same as above

app = FastAPI()

@app.get("/sentry-debug")
async def trigger_error():
    division_by_zero = 1 / 0

When you point your browser to http://localhost:8000/sentry-debug a transaction will be created in the Performance section of sentry.io. Additionally, an error event will be sent to sentry.io and will be connected to the transaction.

It takes a couple of moments for the data to appear in sentry.io.

Behaviour

Issue Reporting

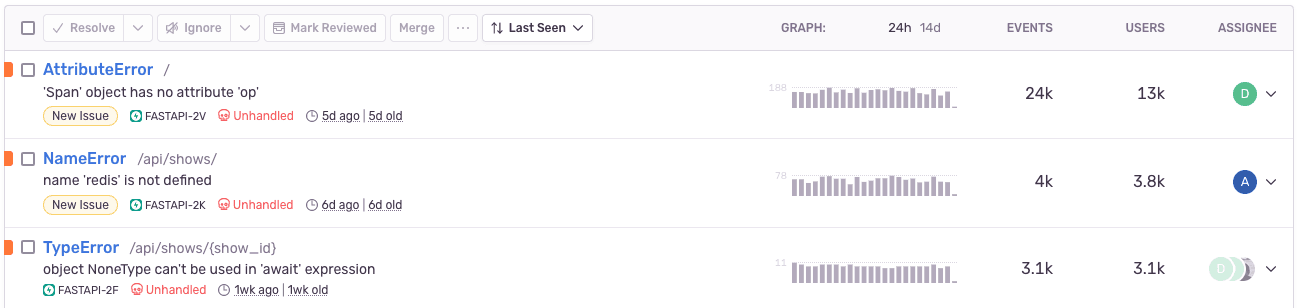

The following information about your FastAPI project will be available to you on Sentry.io:

• By default, all exceptions leading to an Internal Server Error are captured and reported. The HTTP status codes to report on are configurable via the failed_request_status_codes option.
• Request data such as URL, HTTP method, headers, form data, and JSON payloads is attached to all issues.
• Sentry excludes raw bodies and multipart file uploads.
• Sentry also excludes personally identifiable information (such as user ids, usernames, cookies, authorization headers, IP addresses) unless you set send_default_pii to True.

Monitor Performance

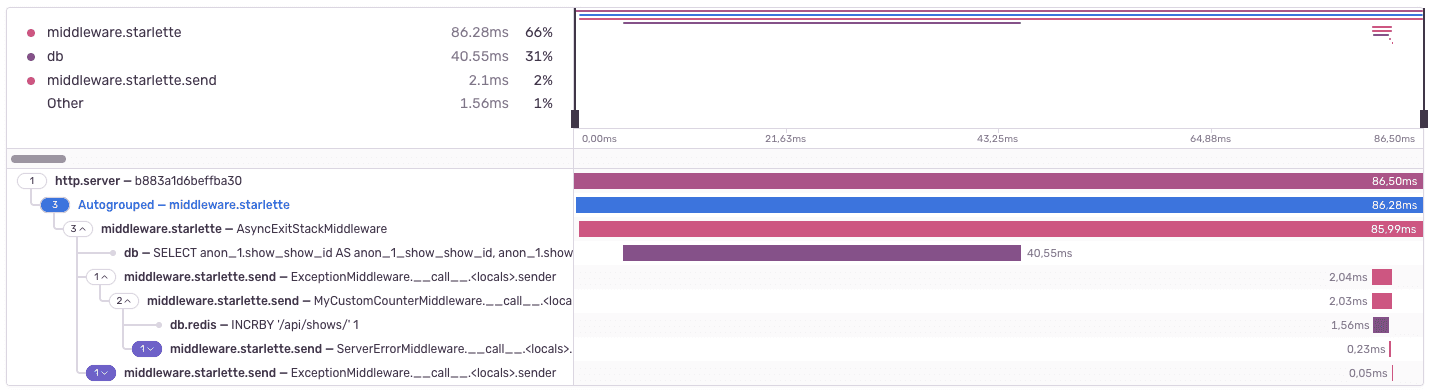

The following parts of your FastAPI project are monitored:

• Middleware stack
• Middleware send and receive callbacks
• Database queries
• Redis commands

Options

By adding FastApiIntegration to your sentry_sdk.init() call explicitly, you can set options for FastApiIntegration to change its behavior. Because FastAPI is based on the Starlette framework, both integrations, StarletteIntegration and FastApiIntegration, must be instantiated.

from sentry_sdk.integrations.starlette import StarletteIntegration
from sentry_sdk.integrations.fastapi import FastApiIntegration

sentry_sdk.init(
    # same as above
    integrations=[
        StarletteIntegration(
            transaction_style="endpoint",
            failed_request_status_codes={403, *range(500, 599)},
            http_methods_to_capture=("GET",),
        ),
        FastApiIntegration(
            transaction_style="endpoint",
            failed_request_status_codes={403, *range(500, 599)},
            http_methods_to_capture=("GET",),
        ),
    ]
)

You can pass the following keyword arguments to StarletteIntegration() and FastApiIntegration():

• transaction_style:

  This option lets you influence how the transactions are named in Sentry. For example:

  Python

  Copied

  import sentry_sdk
  from sentry_sdk.integrations.starlette import StarletteIntegration
  from sentry_sdk.integrations.fastapi import FastApiIntegration

  sentry_sdk.init(
      # ...
      integrations=[
          StarletteIntegration(
              transaction_style="endpoint",
          ),
          FastApiIntegration(
              transaction_style="endpoint",
          ),
      ],
  )

  app = FastAPI()

  @app.get("/catalog/product/{product_id}")
  async def product_detail(product_id):
      return {...}


  In the above code, the transaction name will be:

  • "/catalog/product/{product_id}" if you set transaction_style="url"
  • "product_detail" if you set transaction_style="endpoint"

  The default is "url".

• failed_request_status_codes:

  A set of integers that will determine which status codes should be reported to Sentry.

  The failed_request_status_codes option determines whether HTTPException exceptions should be reported to Sentry. Unhandled exceptions that don't have a status_code attribute will always be reported to Sentry.

  Examples of valid failed_request_status_codes:

  • {500} will only send events on HTTP 500.
  • {400, *range(500, 600)} will send events on HTTP 400 as well as the 5xx range.
  • {500, 503} will send events on HTTP 500 and 503.
  • set() (the empty set) will not send events for any HTTP status code.

  The default is {*range(500, 600)}, meaning that all 5xx status codes are reported to Sentry.

• http_methods_to_capture:

  A tuple containing all the HTTP methods that should create a transaction in Sentry.

  The default is ("CONNECT", "DELETE", "GET", "PATCH", "POST", "PUT", "TRACE",).

  (Note that OPTIONS and HEAD are missing by default.)

  Added in 2.15.0

  The http_methods_to_capture option.

Supported Versions

• FastAPI: 0.79.0+
• Python: 3.7+
